Introduction to Contactless Liquid Level Monitoring

In industrial processes across numerous sectors, accurately measuring liquid levels within tanks and vessels is paramount for operational efficiency, safety, and inventory control. Traditional methods often involve direct contact with the medium, which can lead to issues like contamination, mechanical wear, and limited applicability in harsh environments. This is where contactless monitoring technologies, particularly magnetostrictive technology, offer a superior solution. By eliminating physical contact with the liquid, these systems provide exceptional reliability and precision.

Understanding the Magnetostrictive Principle

At the heart of this technology lies the magnetostrictive principle, a physical phenomenon where certain ferromagnetic materials change their shape or dimensions when exposed to a magnetic field. In the context of level sensing, this effect is utilized with remarkable ingenuity. The core component is a specialized waveguide wire made from a magnetostrictive alloy. When a current pulse is sent down this wire, it generates a circular magnetic field along its entire length. The real magic happens when this field interacts with a permanent magnet housed within a float that rides on the liquid's surface.

The Interaction of Magnetic Fields and Waveguide

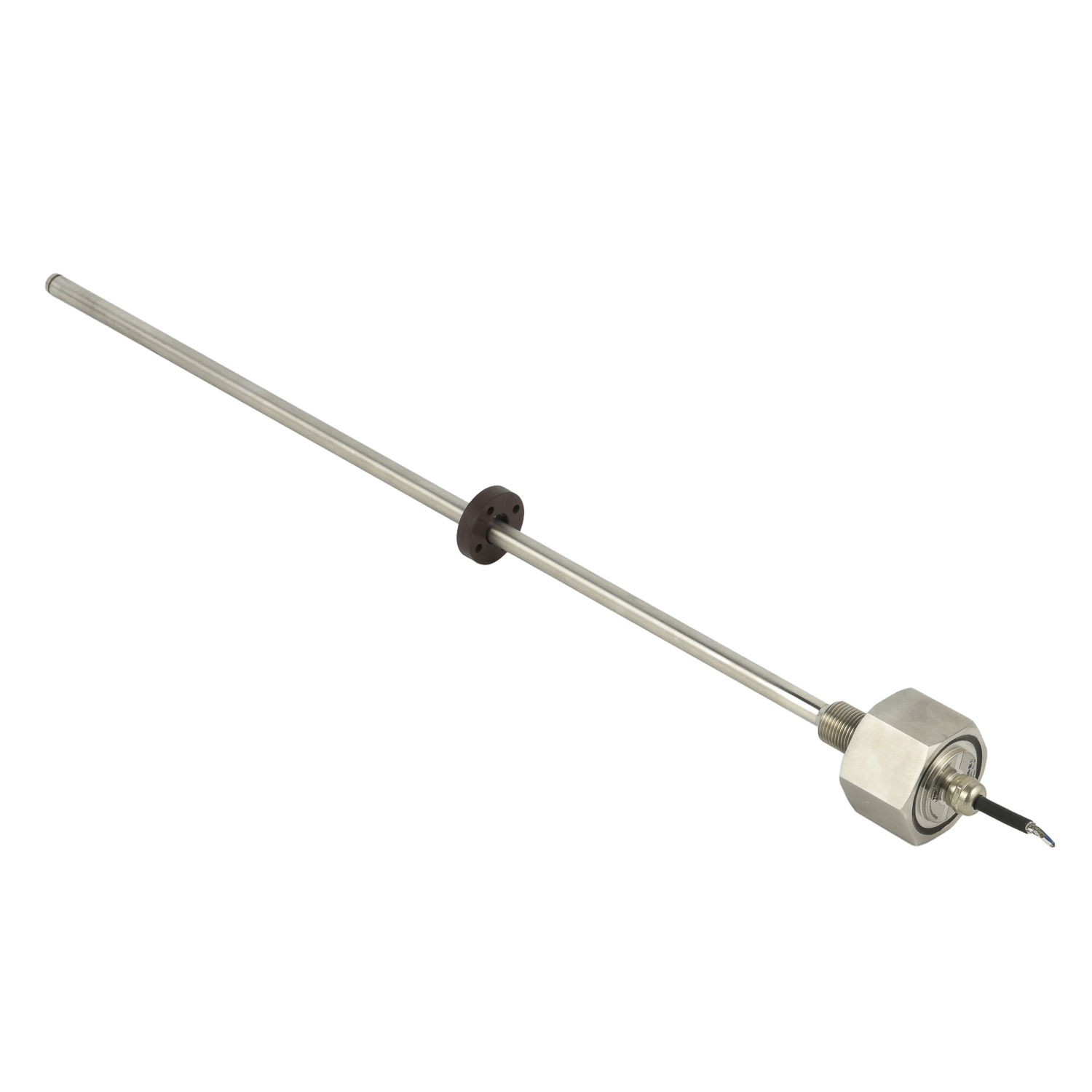

The float, which contains the permanent magnet, moves freely with the changing liquid level. Its magnetic field surrounds the waveguide wire. When the interrogation current pulse is sent down the wire, the two magnetic fields—one from the current pulse and one from the float's magnet—intersect at the precise location of the float. This interaction creates a torsional strain wave, or a "twist," in the waveguide wire due to the magnetostrictive effect. This wave travels back along the wire at a constant, known speed.

Precise Time-of-Flight Measurement

A sensitive detector, typically located at the top of the sensor, measures the exact time interval between the sending of the initial current pulse and the arrival of the returning torsional wave. Since the speed of the wave is a constant property of the waveguide material, the time delay is directly proportional to the distance the wave traveled. This time-of-flight measurement is exceptionally accurate, allowing the system to calculate the position of the float, and therefore the liquid level, with resolutions often down to fractions of a millimeter.

Key Advantages of Magnetostrictive Level Sensors

The contactless nature of the measurement between the sensor electronics and the float bestows several critical advantages. Firstly, there is no mechanical wear on the sensing element, leading to exceptional long-term stability and a very long operational lifespan. Secondly, because only the float contacts the liquid, these sensors are ideal for handling aggressive, corrosive, or sterile media without risk of contaminating the sensor's internal components. They also offer high accuracy, excellent repeatability, and can provide continuous level measurement.

Applications Across Diverse Industries

The robustness and precision of magnetostrictive technology make it suitable for a wide array of applications. In the oil and gas industry, it is used for tank farm inventory management and custody transfer. In chemical processing plants, it monitors levels of various solvents and reagents. The food and beverage and pharmaceutical industries leverage it for hygienic, non-contaminating measurement of ingredients and products. Furthermore, it is employed in water treatment facilities and for hydraulic reservoir monitoring.

Conclusion: A Reliable and High-Performance Solution

Magnetostrictive technology stands as a testament to sophisticated engineering solving practical industrial challenges. By harnessing a unique physical phenomenon, it enables truly contactless, highly accurate, and reliable liquid level monitoring. Its non-contact operation, combined with high precision and durability, makes it a preferred choice over traditional methods in demanding applications where safety, efficiency, and data integrity are non-negotiable.
