Understanding Magnetostrictive Level Measurement Fundamentals

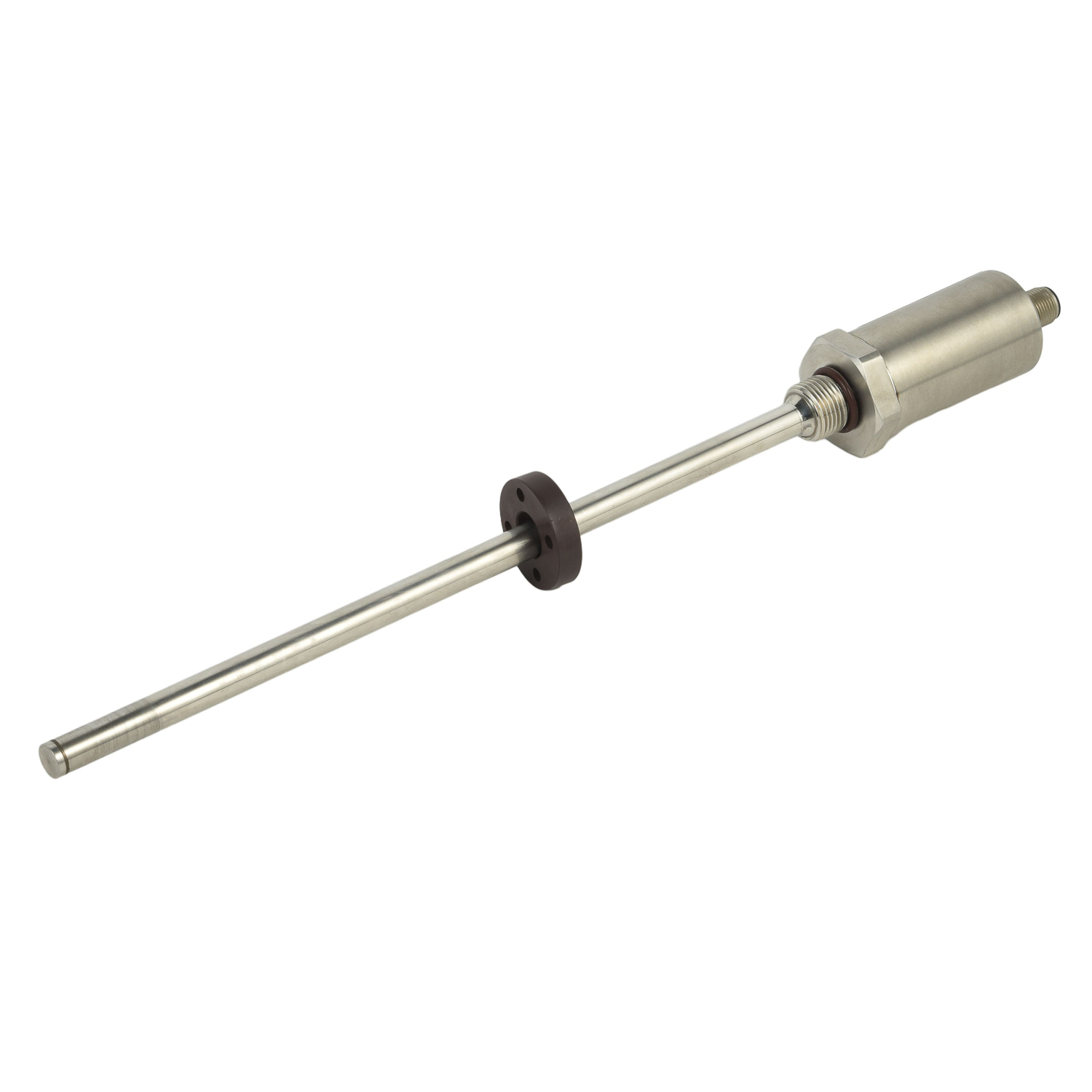

Magnetostrictive liquid level measurement represents one of the most accurate and reliable technologies available for industrial applications. This method utilizes the magnetostrictive effect, where ferromagnetic materials change their shape when exposed to magnetic fields. The core principle involves a waveguide wire enclosed within a protective tube, with a float containing permanent magnets that moves along the outside of this tube. When the system generates a current pulse through the waveguide, it creates a circumferential magnetic field that interacts with the float's permanent magnet. This interaction produces a torsional stress wave that travels along the waveguide at sonic speed, enabling precise position detection of the liquid level.

How Magnetostrictive Level Transmitters Work

The operational mechanism begins when the electronics module sends a low-energy current pulse down the magnetostrictive waveguide. Simultaneously, the float's permanent magnet creates a magnetic field around the waveguide. When these two magnetic fields intersect, they generate a mechanical twist in the waveguide due to the Villari effect. This torsional wave travels back to the sensing element at the speed of sound, where piezoelectric sensors detect the returning signal. The system precisely measures the time interval between sending the current pulse and receiving the return signal, calculating the exact float position and thus the liquid level with remarkable accuracy, typically within millimeters.

Key Advantages Over Alternative Measurement Technologies

Magnetostrictive technology offers numerous benefits that make it superior to other level measurement methods. The non-contact measurement principle ensures minimal wear and extended operational life, while the hermetically sealed design provides excellent resistance to harsh process conditions. These sensors deliver exceptional accuracy, often reaching ±0.05% of full scale, with stable performance unaffected by density, dielectric constant, or conductivity changes. The technology supports continuous level measurement and can simultaneously monitor interface levels and temperature through integrated multi-float designs and RTD options. Additionally, magnetostrictive transmitters require minimal calibration and maintenance, reducing total cost of ownership.

Critical Installation Considerations and Best Practices

Proper installation significantly impacts measurement accuracy and sensor longevity. Engineers must consider float selection based on specific gravity and process temperature requirements, ensuring proper buoyancy and material compatibility. The sensor should mount vertically with adequate clearance from tank walls and internal obstructions to prevent float interference. In turbulent applications, stilling wells or cages may be necessary to stabilize the float movement. Electrical connections require proper grounding and shielding to prevent signal interference, while the electronics housing should position to allow easy access for configuration and maintenance. Regular verification against manual measurements ensures ongoing accuracy.

Applications Across Industrial Sectors

Magnetostrictive level transmitters find extensive applications across numerous industries due to their versatility and reliability. In chemical processing plants, they accurately measure corrosive liquids and solvents in storage tanks and reactors. The oil and gas industry utilizes them for interface detection between oil and water layers in separators and for inventory management in large storage tanks. Pharmaceutical and food-grade applications benefit from their sanitary designs and precision for batching and formulation processes. Power generation facilities employ these transmitters for fuel oil tank monitoring and demineralized water storage, while marine applications use them for ballast tank management and fuel level monitoring.

Troubleshooting Common Operational Challenges

Even with robust design, magnetostrictive level sensors may encounter operational issues that require systematic troubleshooting. Float hang-up often results from mechanical obstructions or material buildup, requiring inspection and cleaning. Erratic readings may indicate electrical noise interference, necessitating improved grounding or cable shielding. Complete signal loss typically points to wiring problems or electronics failure, requiring circuit continuity checks and component testing. Calibration drift can occur over extended periods, demanding verification against known reference points. Understanding these common challenges and their solutions ensures maximum operational uptime and measurement reliability.

Future Developments in Magnetostrictive Technology

The evolution of magnetostrictive level measurement continues with emerging technological advancements. Smart digital protocols like WirelessHART and enhanced Foundation Fieldbus implementations are improving integration with modern control systems. Advanced diagnostics capabilities now provide predictive maintenance alerts and performance trending data. Miniaturization efforts are creating more compact designs for space-constrained applications while maintaining measurement accuracy. Improved materials science is yielding enhanced corrosion resistance and higher temperature capabilities. These developments ensure magnetostrictive technology remains at the forefront of precision level measurement solutions for evolving industrial requirements.
