Introduction to Magnetostrictive Sensor Technology

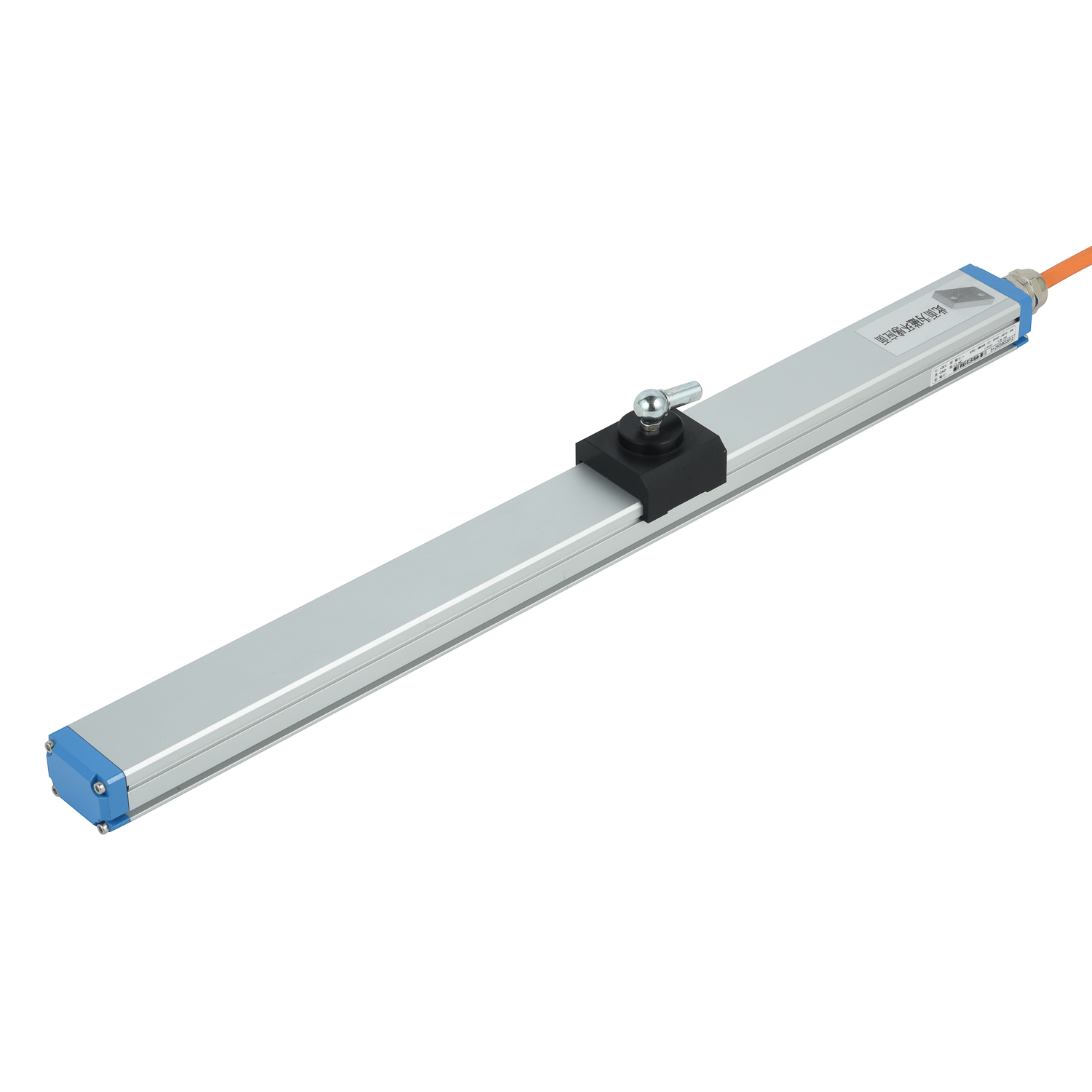

Magnetostrictive sensors represent a pinnacle of precision in industrial measurement, utilizing the magnetostrictive effect to determine position, level, or temperature with exceptional accuracy. This technology relies on the interaction between a magnetic field and a ferromagnetic waveguide. A current pulse sent down the waveguide generates a circumferential magnetic field. When this field intersects with the magnetic field from a permanent magnet in a float or position marker, it creates a torsional strain wave that travels back to the sensing head. The time-of-flight of this wave is measured to calculate the exact position. Their inherent robustness and reliability make them ideal for harsh environments like hydraulic systems, tank level monitoring, and heavy machinery. Understanding this core functionality is the first step toward implementing an effective remote monitoring solution, as it highlights the critical electrical signals that need to be captured and transmitted.

The Critical Need for Remote Monitoring Capabilities

The transition from local to remote monitoring is no longer a luxury but a necessity for modern industrial operations. Traditional methods of manually checking sensor readings are inefficient, costly, and prone to human error. More importantly, they offer only a snapshot in time, missing critical trends or sudden fault conditions that can lead to costly downtime or safety hazards. Remote monitoring of magnetostrictive sensors enables real-time visibility into asset performance from any location. This capability is the foundation of predictive maintenance strategies, allowing engineers to analyze continuous data streams to detect anomalies like drift, increased noise, or signal drop-outs long before a complete failure occurs. By enabling remote access, organizations can significantly reduce maintenance costs, extend equipment lifespan, enhance operational safety, and make more informed, data-driven decisions to optimize their processes.

Selecting the Right Communication Protocol: From 4-20mA to IoT

Choosing the appropriate communication protocol is the most crucial decision in enabling remote monitoring. The choice depends on factors like distance, data requirements, existing infrastructure, and budget. For simpler applications, traditional 4-20mA analog signals can be digitized using a Remote Terminal Unit (RTU) or an IoT gateway that converts the analog signal into a digital data packet. However, for higher data resolution and multi-variable sensing, native digital protocols are superior. Common industrial options include:

* HART: Allows digital communication superimposed on the 4-20mA signal, offering a good upgrade path for existing systems.

* PROFIBUS/Modbus: Robust fieldbus protocols ideal for factory automation within a controlled environment.

* IO-Link: A point-to-point serial communication protocol that provides detailed sensor parameter data and simplified diagnostics.

For truly wireless remote monitoring, protocols like LoRaWAN and NB-IoT are excellent for long-range, low-power applications, sending data directly to the cloud. For higher bandwidth needs within a facility, WirelessHART or Wi-Fi may be more suitable.

Implementing a Robust Data Acquisition and Gateway System

The data acquisition system acts as the bridge between the physical magnetostrictive sensor and the digital world. This typically involves an IoT gateway or a Programmable Logic Controller (PLC) with communication modules. The sensor's output signal is connected to the input module of this gateway. The gateway's primary functions are to:

1. Acquire Data: Read the raw signal from the sensor, whether analog or digital.

2. Process Data: Convert the signal into a meaningful engineering value (e.g., millimeters, liters, degrees Celsius).

3. Tag Data: Associate the value with a unique tag identifier for the specific sensor.

4. Transmit Data: Package the data and send it to a central platform using a standard industrial protocol like MQTT or OPC UA, which are lightweight and designed for reliable machine-to-machine communication. The gateway must be selected based on the input types supported by your sensors and the output protocol required by your monitoring software.

Integrating with a Centralized Monitoring and Analytics Platform

The final step is to visualize, analyze, and act upon the data. The transmitted data from the gateway is ingested by a centralized software platform, which can be an on-premise SCADA system or a cloud-based Industrial IoT platform. This platform provides the user interface for remote monitoring. Key features to look for include:

* Real-Time Dashboards: Customizable views showing current sensor values, trends, and status alerts.

* Historical Data Logging: Storage of all data for trend analysis and reporting.

* Alarm Management: Configurable thresholds that trigger immediate notifications via email or SMS when a reading goes out of bounds.

* Predictive Analytics: Advanced platforms use machine learning algorithms to model normal sensor behavior and flag subtle deviations that indicate potential future failures. This integration transforms raw data into actionable intelligence, completing the loop for a fully functional remote monitoring system for magnetostrictive sensors.

Ensuring Security and Reliability in Remote Systems

When deploying a remote monitoring solution, security and reliability cannot be an afterthought. An insecure system is a vulnerability, potentially allowing unauthorized access or manipulation of critical operational data. Implement a defense-in-depth strategy starting with network security: use firewalls, virtual private networks, and ensure all data transmissions are encrypted. Choose hardware and software from reputable vendors that provide regular security patches. Furthermore, the system must be reliable. This involves selecting industrial-grade components designed for 24/7 operation in harsh conditions, implementing redundant power supplies, and having a failover plan for communication links. Regular system audits and updates are essential to maintain integrity, ensuring that your remote monitoring system for magnetostrictive sensors remains a trusted asset, not a liability.
